Large Images for Download





Use your browser to download (usually right mouse click) these faceplate images for panel layout . They are not quite exact size but you can use your image editor to scale the printing to actual size.

MicroEncoder: full size is 3.125" diameter. Fits standard 3-1/8" four-screw mounting hole.

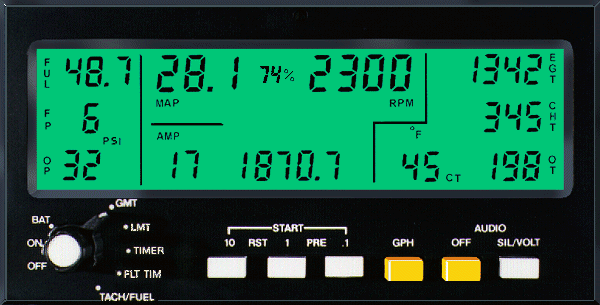

MicroMonitor: full size is 6.31" wide by 3.25" high. Fits standard radio stack. Comes with mounting tray.
